Customized Galvanized Steel Grating Supplier Industrial Working Platform Floor Walkway Platform
Steel structure platform with flat roof on top, suitable for large products. Round pipe and square pipe are commonly used for uprights, while main and secondary beams are typically constructed from H-steel.

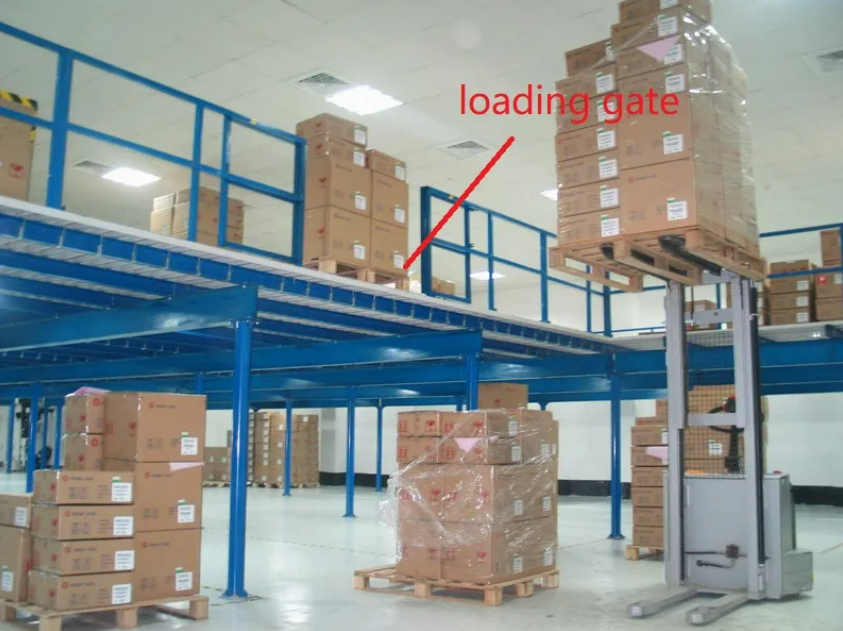

This warehouse steel platform is built with heavy-duty steel columns and H-shaped steel structures, providing enhanced load capacity. The distance between columns can be increased as needed.
The platform can be assembled without requiring welding on site. Different designs can be provided based on loading capacity requirements by selecting appropriate material specifications. With high intensity and wide utilization, it can serve both for goods storage and office space.
Steel structure platforms can be freely installed or dismantled from warehouse grounds, with column spacing typically less than 6000mm.
Standard specifications include: first level height approximately 3000mm, and 2500mm for second and third floor levels. Floor loading capacity can be designed up to 1000kg/square meter.
Frequently Asked Questions
What is steel grating?
Open-grid steel panels consisting of bearing and cross bars, designed for industrial walkways, platforms, drains, and stair treads.
What are the main types of steel grating?
Welded, press-locked, swage-locked, and riveted types; available with plain or serrated surfaces.
What materials are used for steel grating?
Q235/A36 carbon steel, stainless steel, aluminum; custom grades available upon request.
What standard sizes do you offer?
1000×6000mm (common); bearing bars 25×3/32×5/40×5mm; spacing 30/40/60mm.
What load classes are available?
Light (≤3kN/m²), medium (3-7kN/m²), heavy (7-15kN/m²), and extra heavy (>15kN/m²).
