Integrated Type Hot Dip Galvanized High Load Pressure Locked Grating for Industrial Platforms

Finish treatment : 1.galvanized, 2.untreated(black self-color), 3.painted

Steel flat type : Type F,type I type S,type IS

Pitch : 30 / 30 , 30 / 100 , 30 / 50 , 50 / 100 , ect

Product name : China supplier hot dip galvanized serrated/plain 30×3,32×3 pressure locked grating

Material : Stainless steel/mild steel,Q235,stainless304/316,low carbon steel

Application : Platform,stair tread,walkway,parking lot,trench cover

Grate feature : Anti-corrosive,simple installation,light weight,high load

Color : Black,silver or painted

Model Number : G303/30/40

Certification : GB/T19001-2008/ISO9001:2008

MOQ : 50pieces

Payment Terms : T/T,Western Union,L/C

Supply Ability : 1000t per month

Delivery Time : 7days after prepayment

Packaging Details : Pallets in containers packed by steel strap and worthy sea-shipping, or according to the customers' requirements

Brand Name : Gnee

Contact Now

ISO9001 Pressure Locked Steel Grating Saddle Clip Fixed Integrated Type
25/3, 30/3 Integrated Type Pressure Locked Grating Saddle Clip Fixed
Our Commitment
We promise: cost price for the first cooperation
Our Advantages
  • We are local manufactory - prices are highly competitive
  • Over 20 years of international business experience - high reputation worldwide
  • We adhere to the operational theme of "We only produce products you will praise"
Product Specifications
No. Terms Description
1 Material Low carbon, middle carbon, stainless steel
2 Material Standard GB700-88, ASTM(A36), BS4360(43A), AS3679
3 Bearing Bar Size 20×3, 20×5, 25×3, 25×5, 32×3, 32×5, 35×3, 35×5, 40×3, 40×5, 45×5, 50×3, 50×5, 55×5, 60×5, 65×5mm etc.
4 Bearing Bar Pitch 15, 20, 25, 30, 33, 35, 38, 40, 50, 60, 80, 90mm
5 Cross Bar Pitch 24-200mm
6 Surface Treatment Hot dipped galvanized, painted, self-color
7 Grating Standard YB/T4001.1-2007, ANSI/NAAMM(MBG531-88), BS4592-1987, AS1657-1985
8 Bearing Bar Type F, I, S, IS type
9 Application Floor walkway, industrial platform, stair tread, metal ceiling
10 Features Fine appearance, anti-corrosive, simple installation, light weight, high load, anti-skid, prevent dirt deposition, ventilation, anti-explosion
11 Payment Terms TT, L/C
12 Package Pallets in containers packed by steel strap and worthy sea shipping, or according to customer requirements
13 Product Capacity 10 days for a 20" container

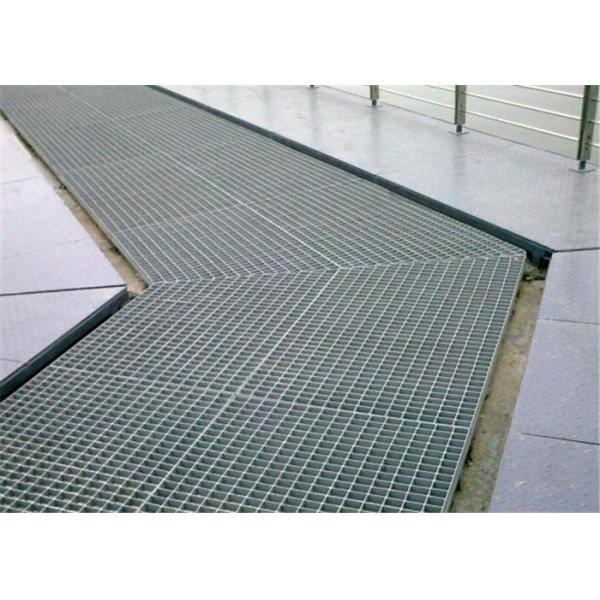

Product Images
Integrated Type Hot Dip Galvanized High Load Pressure Locked Grating for Industrial Platforms Integrated Type Hot Dip Galvanized High Load Pressure Locked Grating for Industrial Platforms
Packaging & Shipping
Pallets in containers packed by steel strap and worthy sea-shipping, or according to customer requirements
How to Order
  • Specify grating specifications, size, quantities, and required surface treatment
  • Provide type and quantity of fasteners (typically 4 sets per grating piece)
  • For large floor areas, provide construction plan, elevation drawing, joint details, and supporting steel beam information
  • For stair treads, specify type, specification, length, width, quantity, and surface treatment
Frequently Asked Questions
How can I get an exact quotation?
  • Provide bearing bar size and pitch of bearing bar and cross bar
  • Specify carrying capacity per square meter and maximum span
  • Send steel grating drawings
What is your factory strength?
We have over 100 staff, with 40 having 20+ years of industry experience. We maintain a complete production line.
Which countries do you export to?
We currently export to Singapore, Vietnam, USA, Kuwait, Austria, Japan, and more.
Do you provide samples?
We supply free common steel grating samples, ready within four days.
What are your delivery timelines?
We typically require 20 days to produce a 20' container (approximately 20 tons) after receiving 30% deposit.
